Parallel and Series Resistor Calculator

What is Parallel and Series Resistor Calculator. In electronic circuits resistors are basic components, used to control the voltage in circuit and flow of current. Engineers and hobbyists to design circuits, often combine resistors to achieve specific resistance values in specific point of circuit ​​that standard components cannot provide. Understanding the behavior of resistors in different configurations is essential for accurate circuit design.

Use our Parallel and Series Resistor Calculator to find the total equivalent resistance of a series or parallel resistance circuit. Select Series or Parallel option as your combination of resisters .

Parallel and Series Resistor Calculator

Resistor Calculator

R1
R2

Total Resistance of :

50 Ω
Formula: 1 R T = ( 1 1 1 + + + R1 R2 R3 etc… )
Circuit: R1 R2 Rn
Formula: RT = R1 + R2 + R3 + etc…

Circuit: R1 R2 Rn

Use Add Resister button to add new resistance in circuit and Clear Resisters input values by pressing Clear Values button. You can add any number of resisters. If you want to remove any resister from between, last or starts, can be remove with X (cross) button in-front the resister.

Ohm\’s Law Calculator

Series and Parallel Capacitance Calculator

About Parallel and Series Resistor Calculator

Resistors in parallel always result in an equivalent resistance that is lower than the resistance of each individual resistor.

Resistors in series, on the other hand, are equivalent to one resistor whose resistance is the sum of each individual resistor.

Series Resistor Configuration

In Series Resistors circuit, resistors are connected end to end, electric current has only a single path to flow through. Because the current is identical across all components, the total equivalent resistance (Req) is simply the direct algebraic sum of each individual resistor.

Current: In series circuits the exact same (input) current flows sequentially through every resistor.

Voltage (V): While The total voltage are drops across each resistor proportional to its resistance value (Vtotal = V1 + V2 + … + Vn).

Resistance: The total equivalent resistance (Rseries or Req)  is simply the sum of all individual resistances

Formula: Req = R1 + R2 + R3 + …. + Rn

Example: If you connect three resistors with values of 100 Ω, 220 Ω, and 330 Ω in series, the total equivalent resistance is 650 Ω. Notice that adding resistors in series always increases the overall resistance.

Req = 130 Ω+ 280 Ω+ 480 Ω= 890 Ω

Parallel Resistor Configuration

In a parallel circuit, components are connected across the same two electrical nodes, creating multiple independent pathways for current to travel. Because the current branches out, the reciprocal of the total equivalent resistance is equal to the sum of the reciprocals of each individual resistance.

Check the resisters color code with colors table.

Voltage (V): The voltage across each individual resistor is the same.

Current (I): The total current is distributed across the branches inversely proportional to their individual resistances.

Parallel

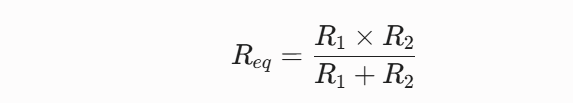

For two parallel resistors, a simplified formula known as \”product over sum\” is often used:

Req =
R1 x R2
R1 + R2

Example: Calculate the equivalent resistance of two resistors in parallel with values R1 = 150 Ω and R2 = 150 Ω:

Req =
150 x 150
150 + 150
=
22500
300
= 75 Ω

Guide for Combination (Series-Parallel) Circuits

Complex electronic circuits frequently combine series and parallel configurations. Follow this 3-step strategy to simplify them:

  • Locate the nodes that share both the start and end connections, then calculate their equivalent resistance (Rp).
  • Combine the remaining series elements: Replace the parallel clusters with their equivalent single resistor values ​​and combine the remaining linear paths.
  • Repeat node simplification: Work systematically from the components furthest from the power source toward the input terminals.

Practical Applications

Resistor networks are used everywhere in modern electronics. Series circuits are commonly found in LED current-limiting setups and simple voltage dividers. Parallel circuits are heavily utilized in power distribution networks to share thermal dissipation loads, in audio equipment volume controls, and in sensor calibration bridges. Utilizing reliable calculation tools ensures your prototypes operate safely within design margins.

Frequently Asked Questions

In a series circuit, resistors are connected end-to-end along a single path, meaning the same current flows through all of them, and their resistances simply add together. In a parallel circuit, resistors are connected across the same two nodes, providing multiple paths for current to flow, which decreases the overall equivalent resistance
